RANGE VCB

Width mm Capacity lt Weight kg Maximum capacity ton mm mm mm mm t t Blade mm Thickness mm t t l/h bar l/h bar
VCB 300R

2800

224 2450 477 190 35 200-250 350 20-25 120

* Weights without bracket

Not suited for cutting of materials with resistance values greater than 900N/mm²

Products and features may vary withouth previous notice

Description

Employment:

  •  recovery of railroad tracks whose components do not stand resistances upper than 900 N/mm²

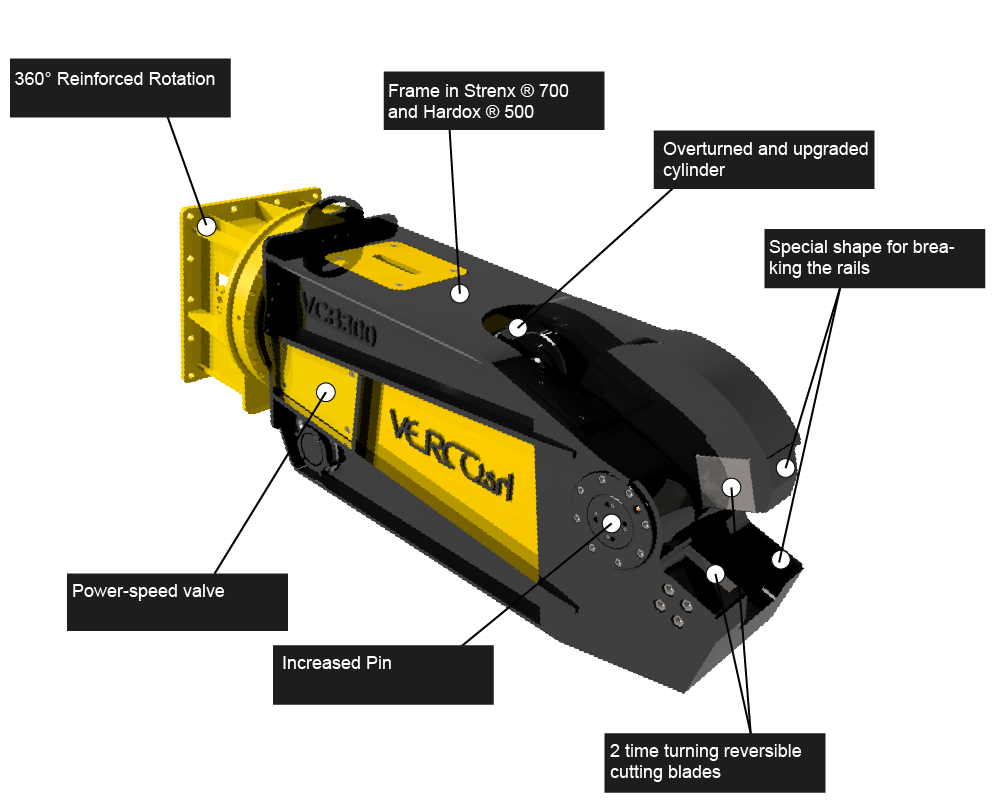

Frame:

  • The whole structure is built with the best steels available on the market: Hardox ® 450/500 and Strenx ® 700 designed to stand up to shocks resulting from the impact against railroad tracks.
  • Strengthened and overturned cylinder with longer stroke and with integrated powerspeed valve to grant a quick job course, and protect the stem from wear (system fully designed by Verco srl).
  • 360° hydraulic rotation equipped with geared motor, pressure control and anti-cavitation valves, in order to allow a fast positioning of the rail cutter.

Mobile jaws

  • Fitted-in pin by liquid nitrogen guarantees perfect integrity and robustness in the body.
  • Special no-tear blade seat for breaking the rails having resistances up to 900 N/mm².
  • 2 time turning reversible blades.
