RANGE VFF

Width mm Capacity lt Weight kg Maximum capacity ton mm mm mm mm t t Blade mm Thickness mm t t l/h bar l/h bar
VFF 140

1300

700 1950 705 60 611 200 11-15 80-160 345
VFF 170

1750

810 2164 826 72 72 200 17-22 100-200 345
VFF 230

2380

1000 2590 1015 82 989 200 22-30 150-250 345
VFF 350

3500

1080 2903 1105 110 1278 270 31-40 200-300 345
VFF 450

4300

1200 3350 1200 125 1350 300 40-55 300-350 345

* Weights without bracket
Force calculated at 75% of the maximum force
Products and features may vary withouth previous notice –

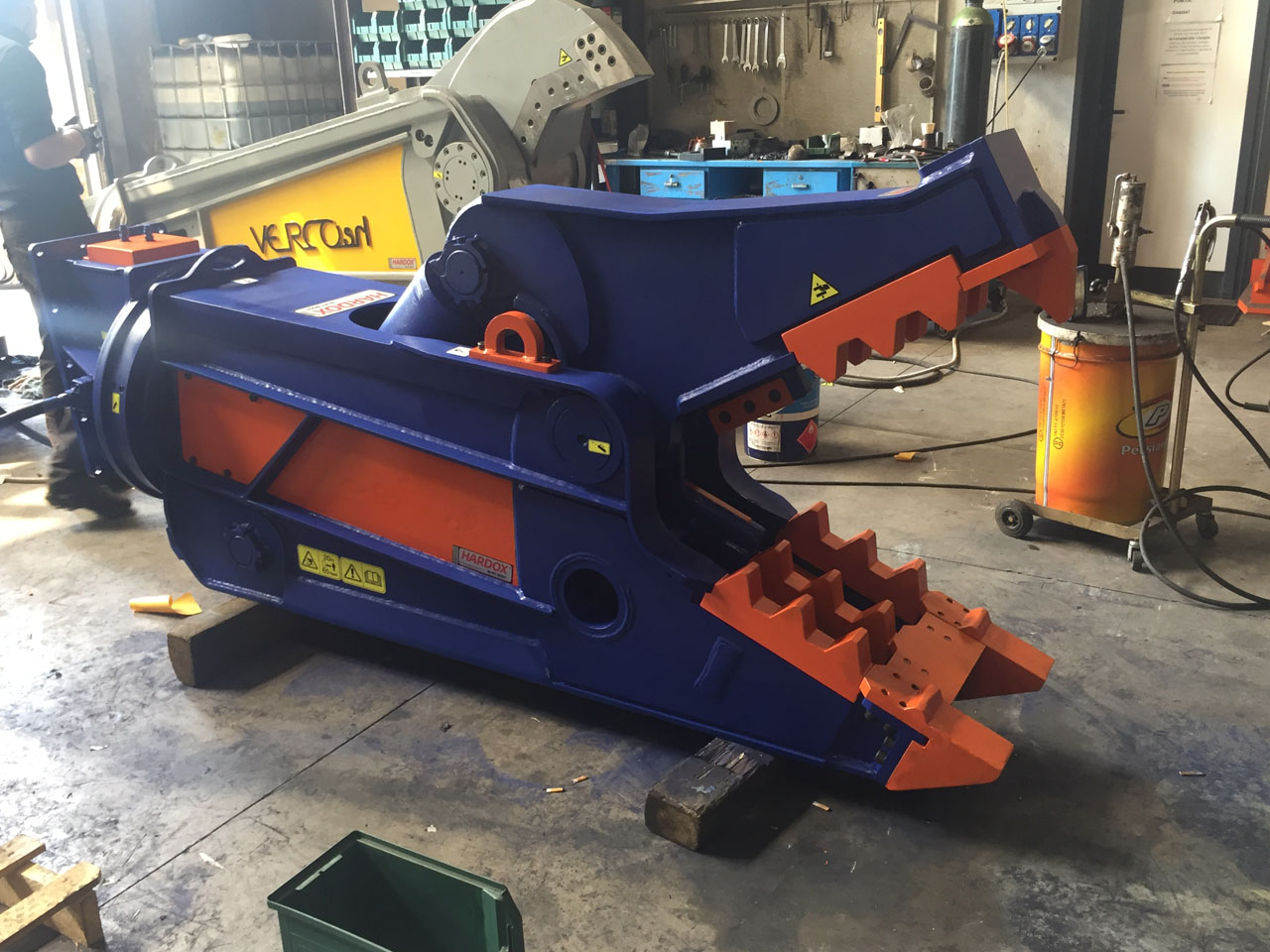

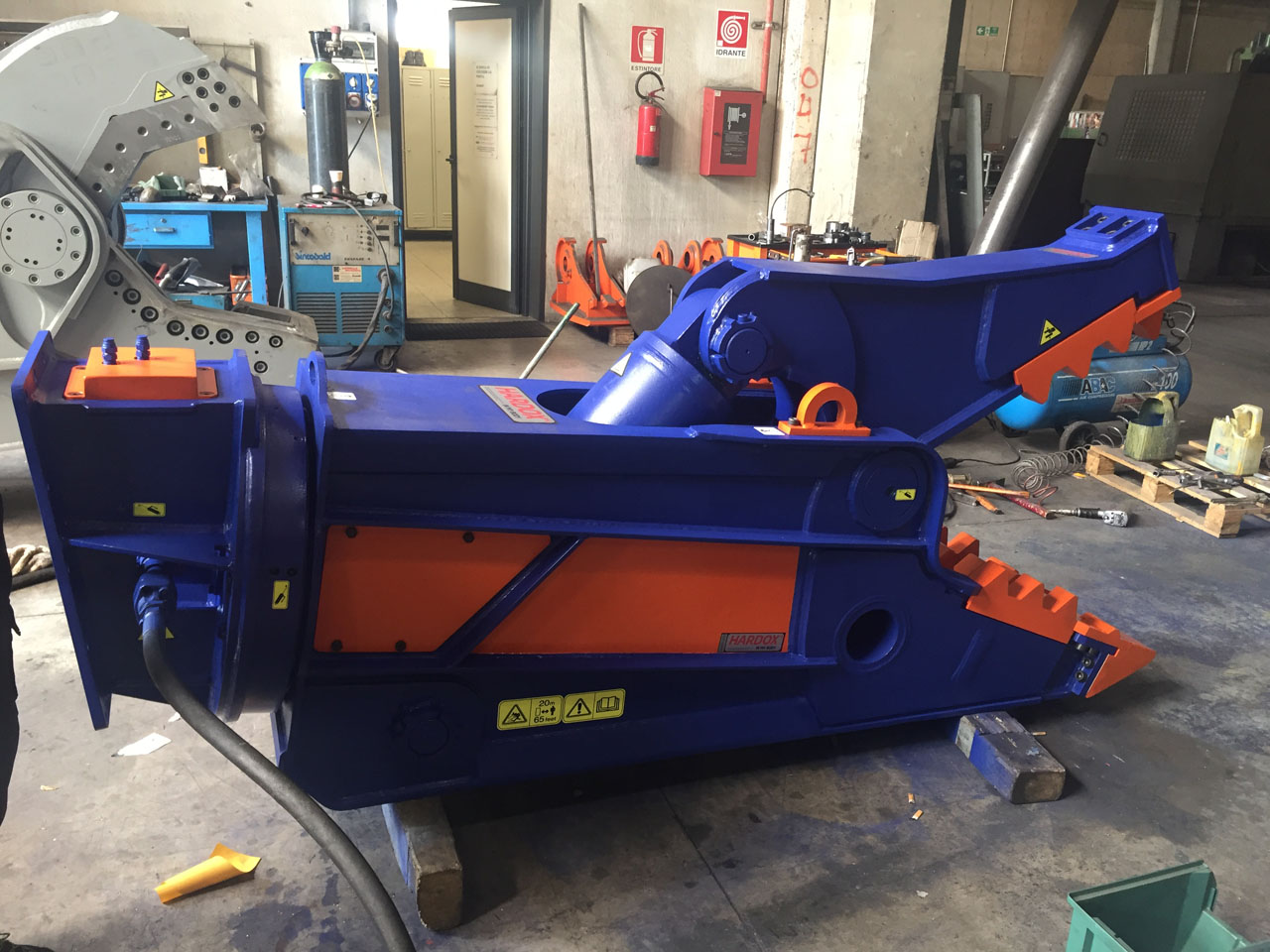

Description

Employment:

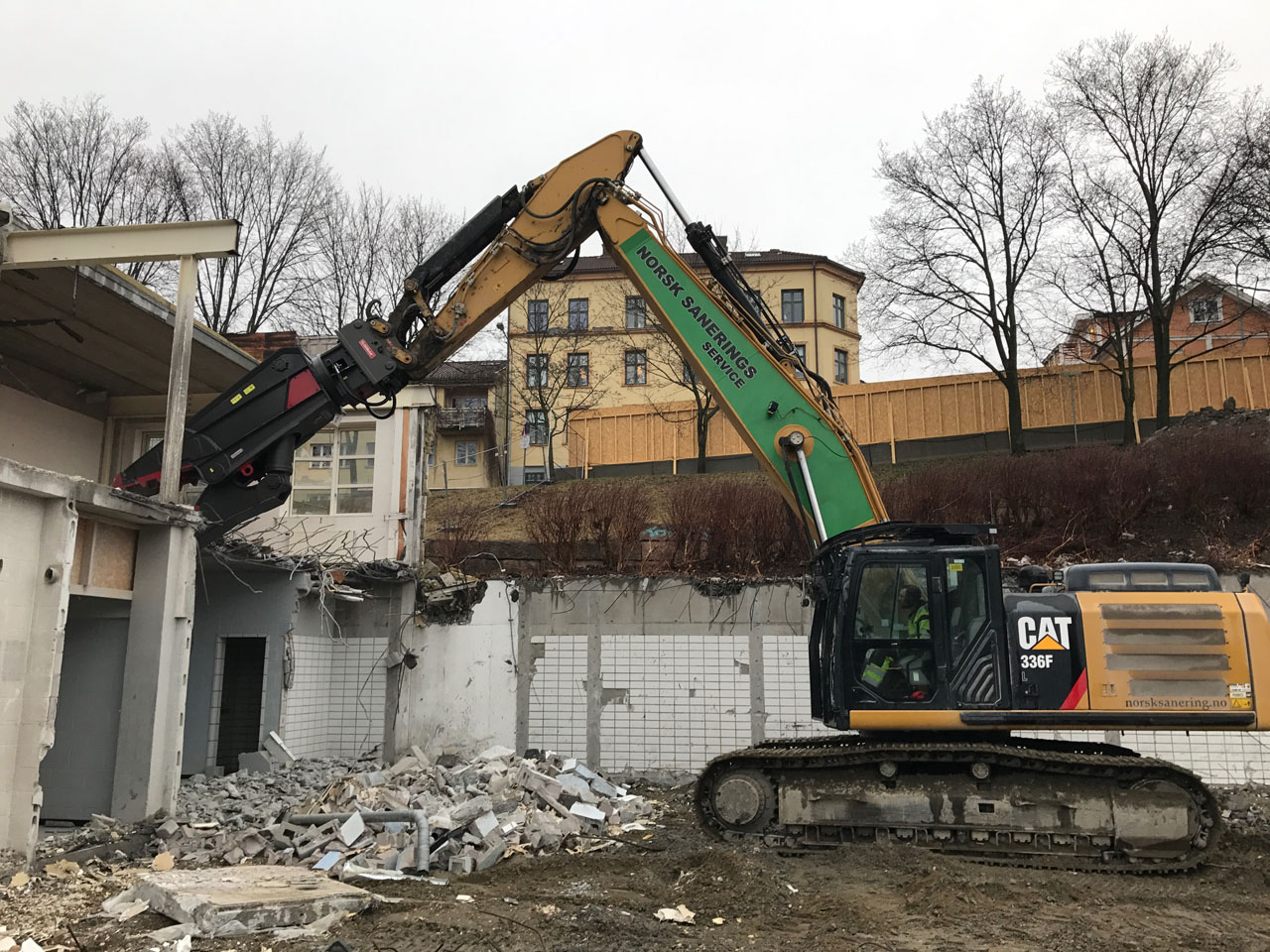

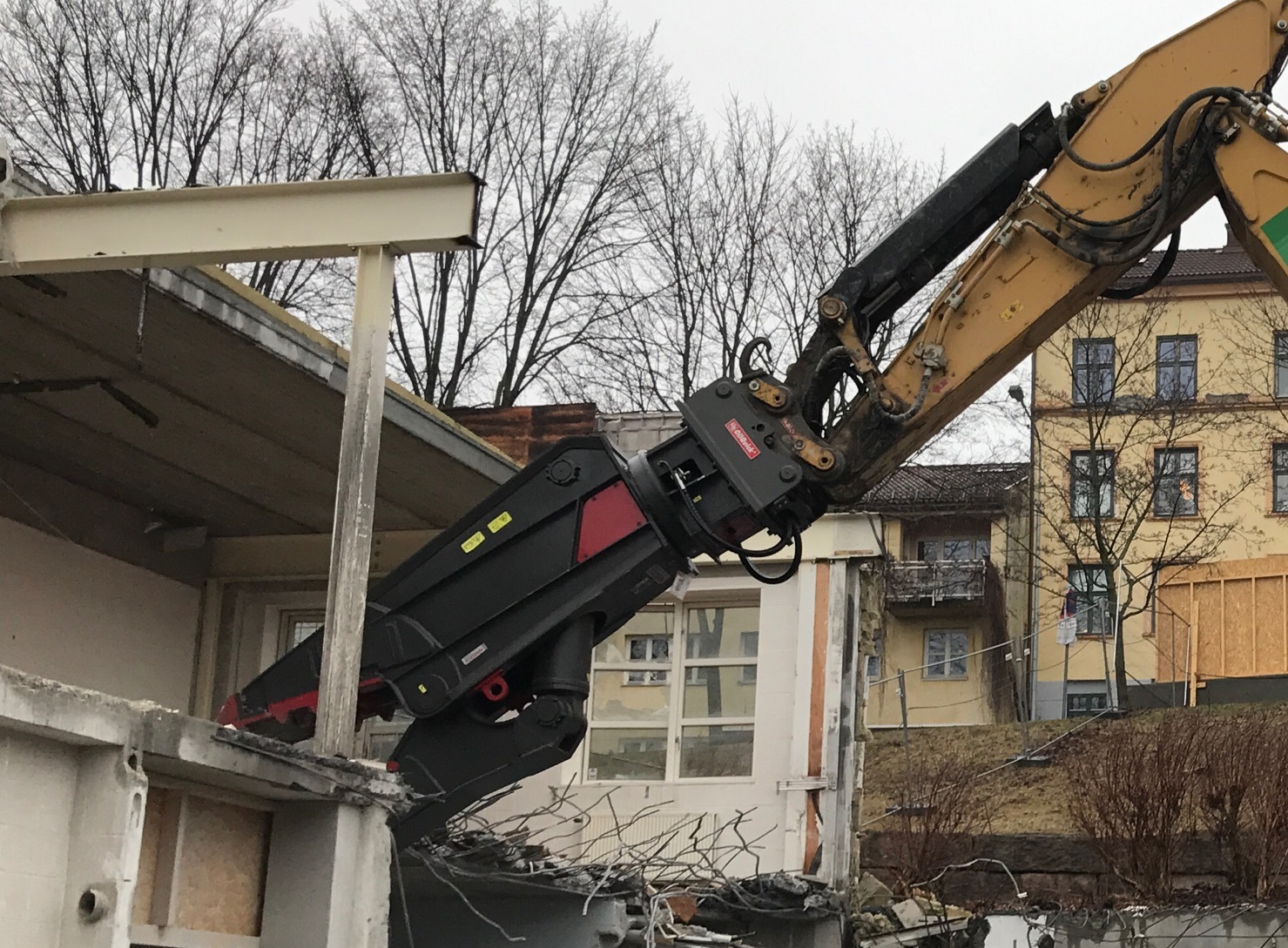

  • Suited for on-ground-secondary crushing of previous demolished structures.
  • Demolition waste recover.

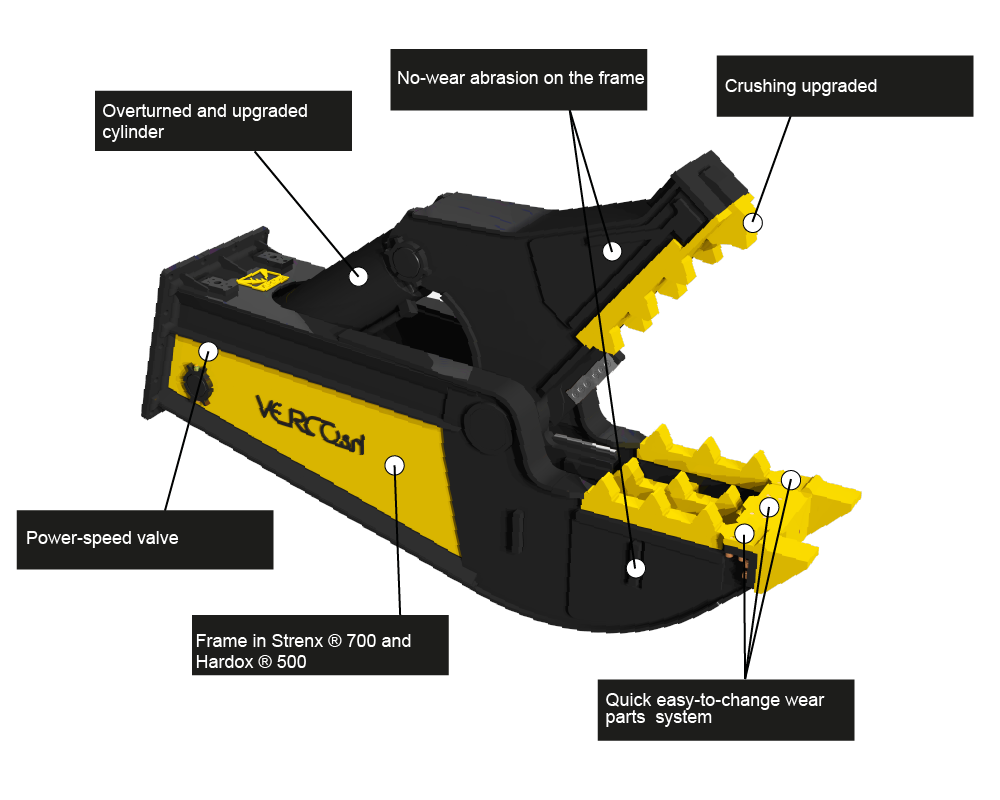

Frame:

  • The whole structure is built with the best steels available on the market: Hardox ® 450/500 and Strenx ® 700 to minimize consumption and maintenance frequencies, so as to contain the costs.
  • Strengthened and overturned cylinder with longer stroke and with integrated power-speed valve to grant a quick job course, protect the stem from continuous wear resulting from the impact against reinforcing steel bars and concrete frames (system fully designed by Verco srl).
  • Designed to guarantee no wear on the structure. All parts areas involved in crushing are protected by interchangeable wear parts with quick disassembly.



Mobile jawsit is built with particular attention on parts areas submitted to wear:

  • Equipped by independent rows of interchangeable teeth in Hardox® 500 easy-to-dismount.
  • Suited blades in Hardox® 500, for cutting concrete steel bars.
